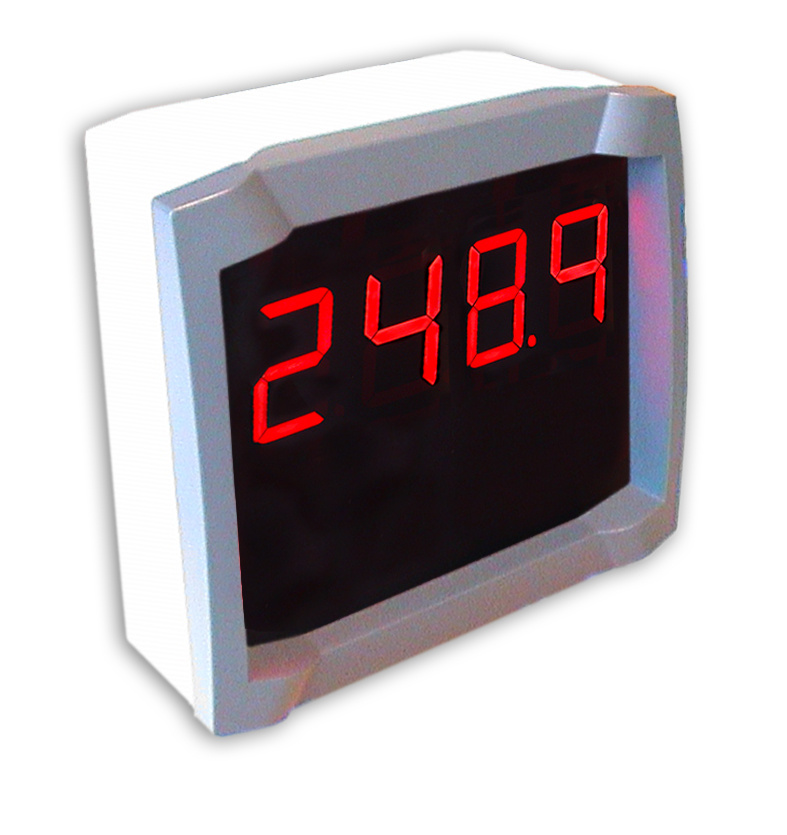

    Large Display for PT100, NTC, PTC, 0-10V, 4-20mA + Analog Output + Alarm Relais

    €275,-Excl. tax We dispatch within : 2 weeks
    Large Display for displaying Temperature or other engineering units. Input Pt100, NTC, PTC, 4-20mA, 0-10V. With mounting bracket.... Show more

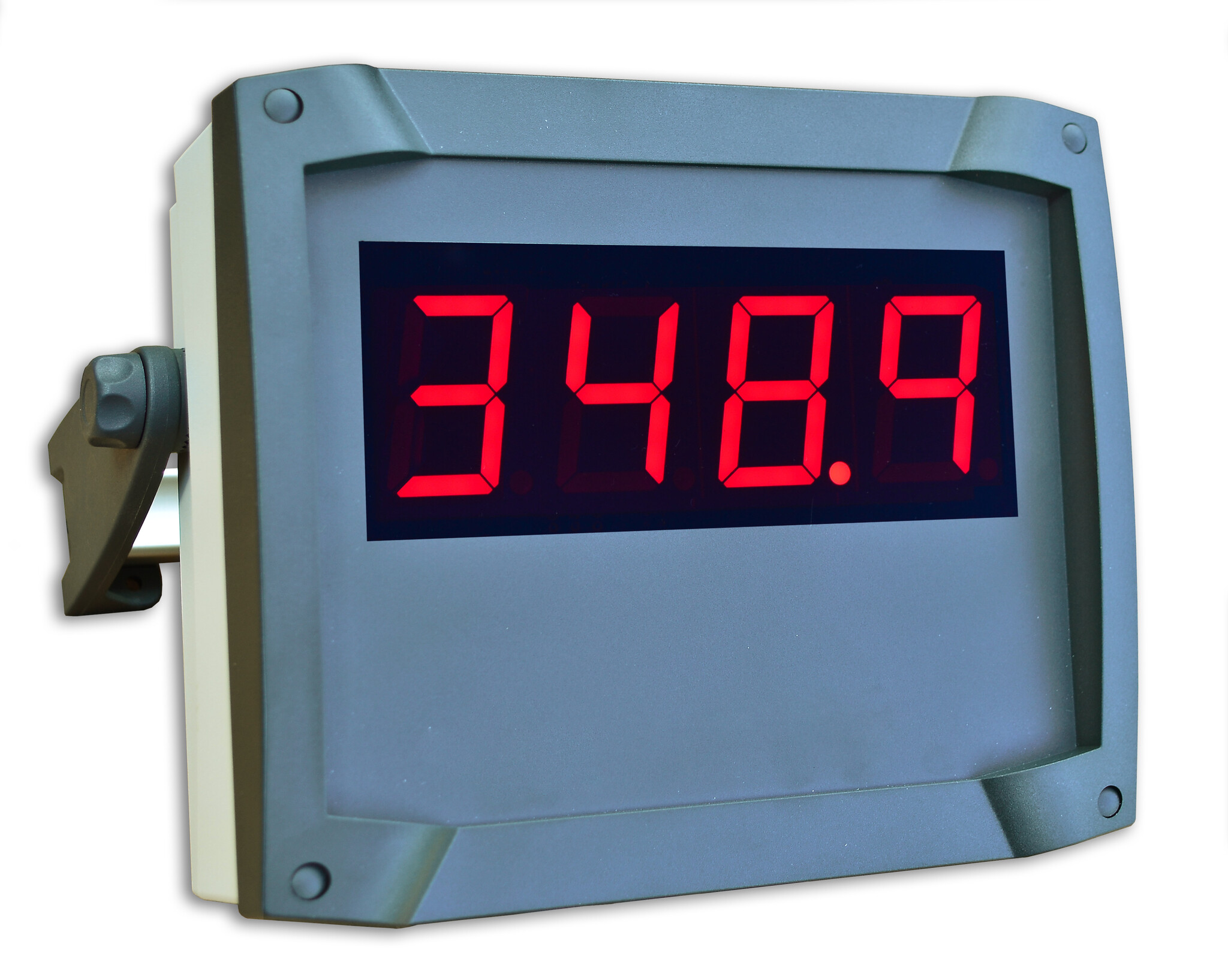

    5 variations PTDIS38-O - Wall Orientable with Mounting Bracket
    • B2B Industrial Supplier since 1999
    • Shipping from our own warehouse in NL !
    • Shipping in EU with DPD Traceable
    • Reliable SSL & Secure Payments

    Product description

    PIMZOS PTDIS38-O

    LED Height : 38 mm

    This large display accepts signal from PT100, NTC, PTC, but also conventional industrial signals such as 4-20mA and 0-10V, making this display very versatile. Programming is made easy, 4 screws loose at the back and a keyboard is visible to make the settings.

    Example : Connect a Pt100, set an alarm setpoint with output via Relay and also create an extra 4-20mA or 0-10V output to continue to a PLC

    Examples of application :

    • Large Walk in Refrigerators
    • Large Walk in Freezers
    • Cool Cabinets ( for Drinks, Convenience Foods )
    • Chill Rooms
    • Office / Work area Air Temperature Comfort
    • large size indoor outdoor application
    • long distance viewing
    • Pharmaceuticals Room Temp
    • Oven, boilers and furnace control application
    Features
    • High luminosity LED
    • 4 red digits of 38 mm
    • Temperature display: -999/9999ºC (Decimal point selectable)
    • IP65 enviromental protection
    Specifications
    Working temperaure: -19°C +60°C
    Storage Temperature:: -40°C +80°C
    Input options : PT100/3 Wire, NTC 10K, PTC 1K, 4-20mA, 0-10V
    Output : 4/20mA, 0-20mA, 0/10V, 2 relays
    Power Supply : 100...250 VAC-DC, Max Consumption: 10 VA
    Display : 4 red digit with 7 segments: High Luminosity
    Display Digit Height: 38 mm
    Display Viewing distance: 30 meters
    Non reflexive front
    Display range: -999 / 9999ºC
    Enclosure: Impact - resistant Plastic self extinguishing: ABS, UL94V0
    Weight: 950 Gram

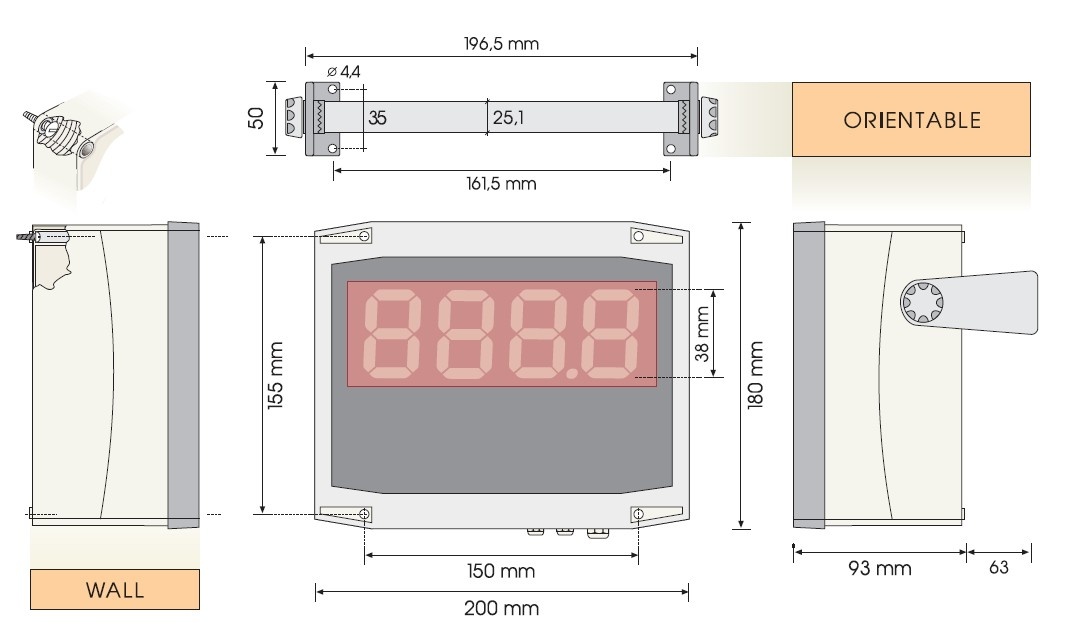

    Dimensions: 180 x 200 x 93 mm
    IP Protection: IP65



    Specifications

    Article number
    PIMZOS PTDIS38-O
    SKU
    PTDIS38-O
    Large Display for PT100, NTC, PTC,  0-10V, 4-20mA + Analog Output + Alarm Relais
    € 275,-
    Excl. tax
    Large Display for PT100, NTC, PTC, 0-10V, 4-20mA + Analog Output + Alarm Relais

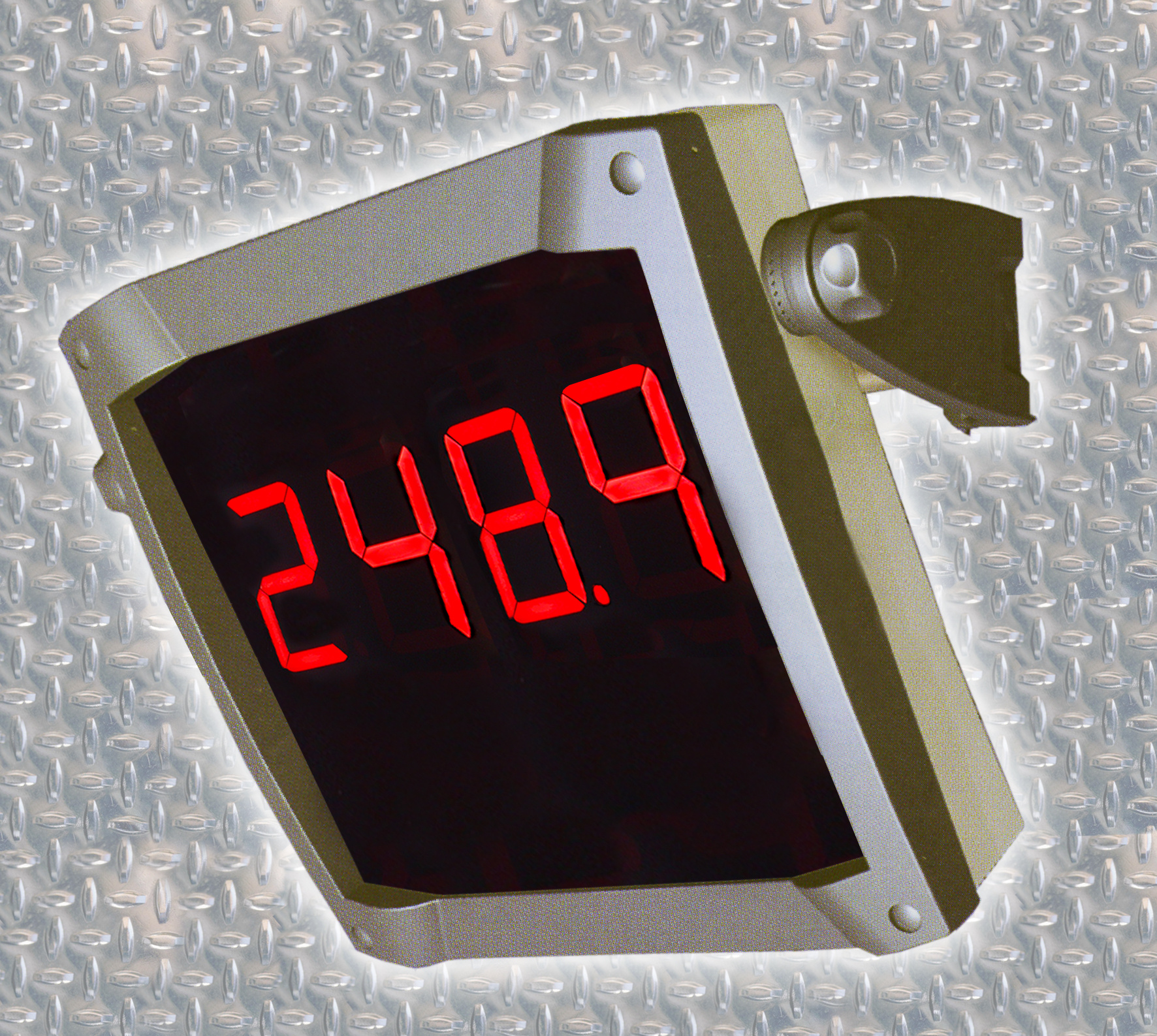

    PTDIS38-O - Wall Orientable with Mounting Bracket
