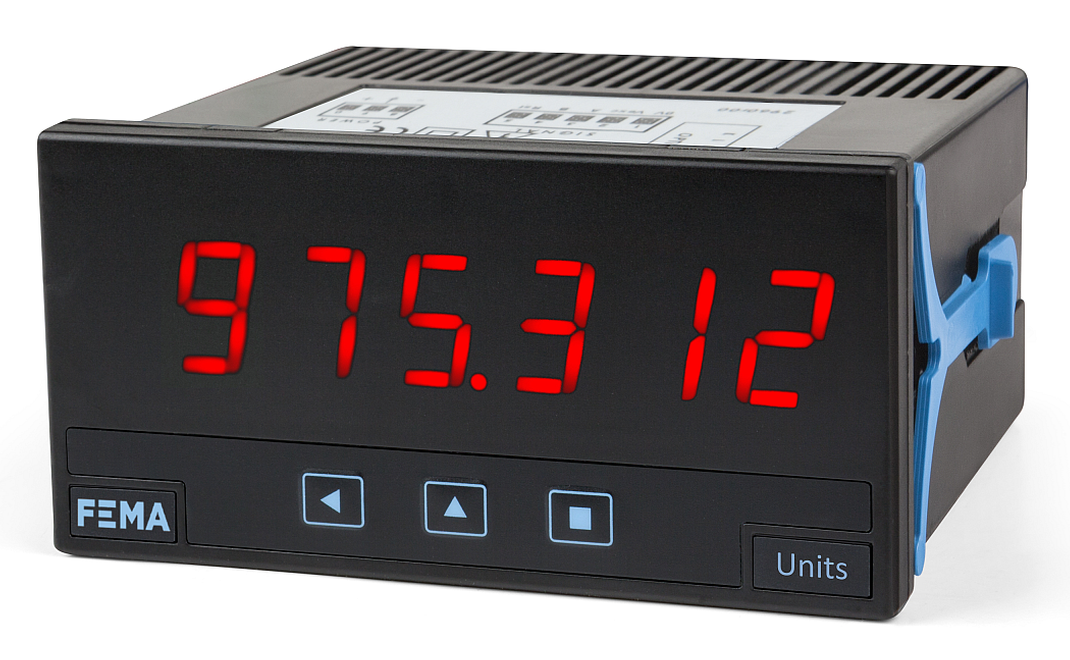

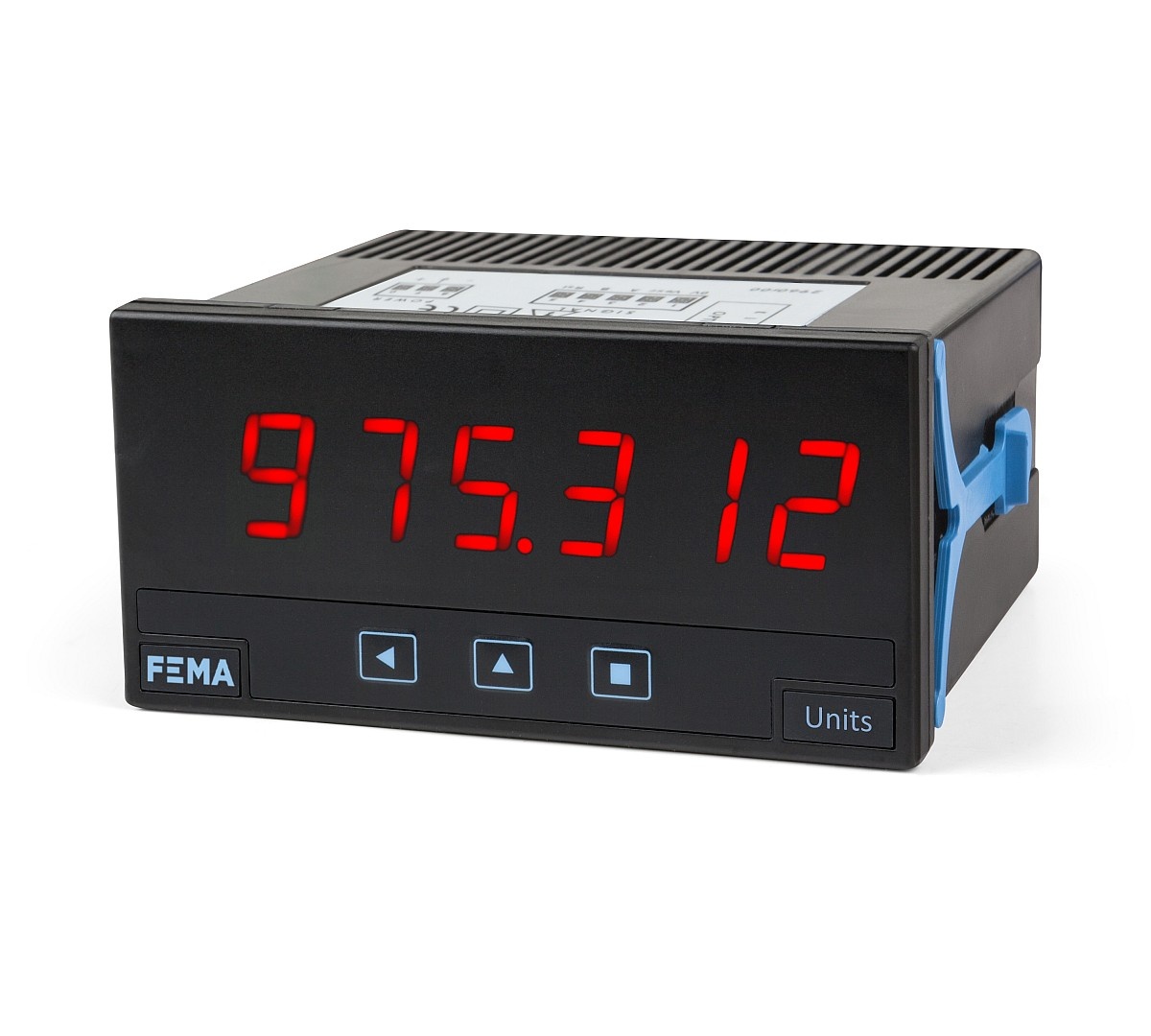

    M60-LC-L Panel Meter for Load cells with 24VDC Power supply

    €235,-Excl. tax We dispatch within : 2 weeks
    Panel meter for loadcell with 4 and 6 wires, 96 x 48 mm (1/8 DIN), 6- digits, 14 mm LED height, Power Supply 24VDC... Show more
    14 variations M60-LC-L-Base model with 24VDC Power supply
    • B2B Industrial Supplier since 1999
    • Shipping from our own warehouse in NL !
    • Shipping in EU with DPD Traceable
    • Reliable SSL & Secure Payments

    Product description

    Download Datasheet Download PDF

    Loadcell Display with 24VDC Power supply

    Panel meter for load cells with 4 and 6 wires. Standard, 96 x 48 mm (1/8 DIN) size, and 6 digits with 14 mm digit height. Provides excitation voltage to power the load cell, configurable for 5 Vdc and 10 Vdc. Up to 60 samples per second. ‘Tare’ and ‘auto-tare’ functions. Optional output modules with relay, transistor, SSR control, analog outputs and MODBUS RTU communication.

    Variants to choose :

    Model
     Voeding 11 to 60 Vdc (24/48 Vac)
    M60-LC-L standard unit
    M60-LC-L-AO + 1 analog output
    M60-LC-L-R1 + 1 relay
    M60-LC-L-R1-AO + 1 relay + 1 analog output
    M60-LC-L-R1-AO-RTU + 1 relay + 1 analog output + 1 MODBUS RTU output
    M60-LC-L-R1-AO-S4 + 1 relay + 1 analog output + 1 RS-485 ASCII output
    M60-LC-L-R1-R1 + 2x 1 relay
    M60-LC-L-R1-R1-AO + 2x 1 relay + 1 analog output
    M60-LC-L-R1-R1-R1 + 3x 1 relay
    M60-LC-L-R1-R1-RTU + 2x 1 relay + 1 MODBUS RTU output
    M60-LC-L-RTU + 1 MODBUS RTU output
    M60-LC-L-S4 + 1 RS-485 ASCII output
    M60-LC-L-T1 + 1 isolated transistor output
    M60-LC-L-T1-S4-SSR + 1 output for SSR control + 1 isolated transistor output + 1 RS-485 ASCII output

    Specifications

    Article number
    M60-LC-L-24VC
    SKU
    M60-LC-L-24VDC
    M60-LC-L Panel Meter for Load cells with 24VDC Power supply
    € 235,-
    Excl. tax
    M60-LC-L Panel Meter for Load cells with 24VDC Power supply
    M60-LC-L-Base model with 24VDC Power supply
    We dispatch within : 2 weeks
